Advanced features

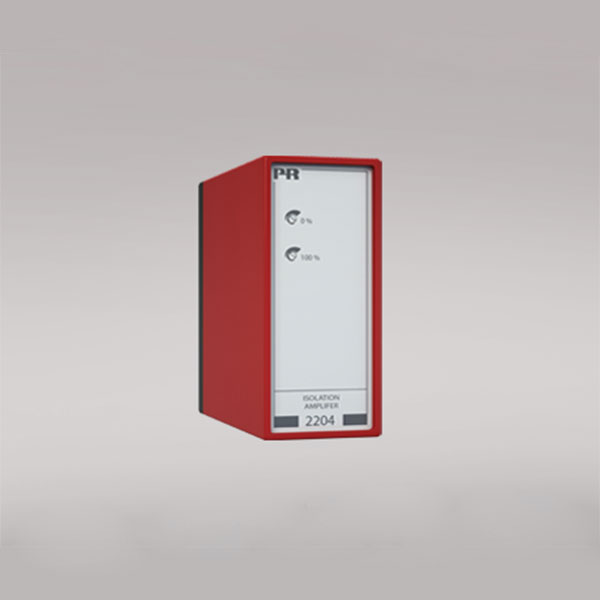

• Factory-calibrated measurement ranges for input and outputs in the 2204 can be selected by the internal DIP-switches without the need for recalibration.

Application

• Signal isolator for analog current / voltage signals.
• 1 : 1 or signal conversion of analog current /voltage signals within the ranges: 0...10 VDC or 0...50 mA on the input and 0...20 mA and 0...10 VDC in fixed ranges on the output.
• Analog signal conditioning with microprocessor based gain and zero offset giving a response time of less than 25 ms.

Technical characteristics

• Universally supplied units have a 3-port galvanic separation between input, supply, and output.
• Mounting for a standard 11-pole socket which can be adapted for DIN rail or plate use with PR’s 7023 adaptor and 7024 mounting keying.
