Application

• 3186A is a 1:1 output loop-powered 2-wire transmitter isolator that excites and measures passive input signals.
• 3186B is a 1:1 output loop-powered 2-wire current isolator that measures active input signals.
• A very competitive choice in terms of both price and technology for galvanic isolation.
• Provides surge suppression and protects control systems from transients and noise.
• 3186 eliminates ground loops and can be used for measuring floating signals.
• The device can be mounted in Safe area or in Zone 2 and Cl. 1 Div 2. area.

Technical characteristics

• 3186 is powered by the host loop voltage.
• Wide supply range from 6...35 V.
• Low input to output voltage drop typ. 2.5 V (3186A).
• Low input drop ≤ 3 V (3186B), even when no loop power is applied to the output terminals.
• Excellent conversion accuracy, better than 0.05% in the range 3.8…20.5 mA.
• Signal range is 3.5...23 mA which means that 3186 is NAMUR NE43 compliant.
• Inputs and outputs are floating and galvanically separated.
• High galvanic isolation of 2.5 kVAC.
• Fast response time < 5 ms.
• Excellent signal/noise ratio > 60 dB.

Mounting / installation

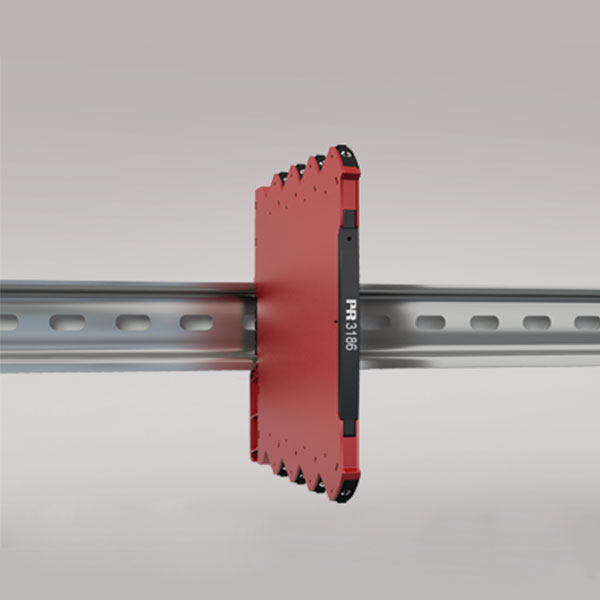

• DIN rail mounting with up to 330 channels per meter.
• Extended operating temperature range from -25...+70°C.
