Application

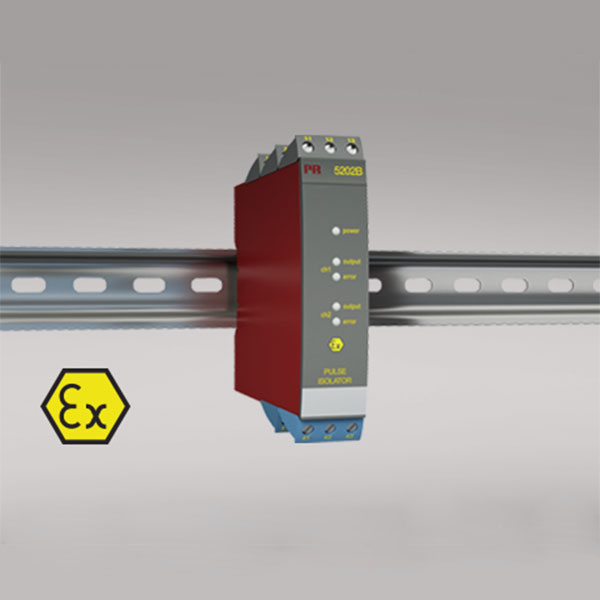

• Pulse isolator with safety barrier for the supply of NAMUR sensors installed in the hazardous area.
• Pulse isolator with safety barrier for the detection of mechanical contacts installed in the hazardous area.
• One input signal can be used on two separate outputs.
• A cable error alarm can be detected on a separate output.

Technical characteristics

• PR5202B1 and 5202B2 have relays with change-over contacts or open NPN collectors available in the safe area.
• PR5202B4 has 4 SPST relays, which are activated simultaneously two and two, available in the safe area. Each relay can be programmed to the function N.O. or N.C.
• Inputs, outputs and supply are floating and galvanically separated.
• 5202B is designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.

Mounting / installation

• Mounted vertically or horizontally on a DIN rail. Up to 84 channels per meter can be mounted.
