Application

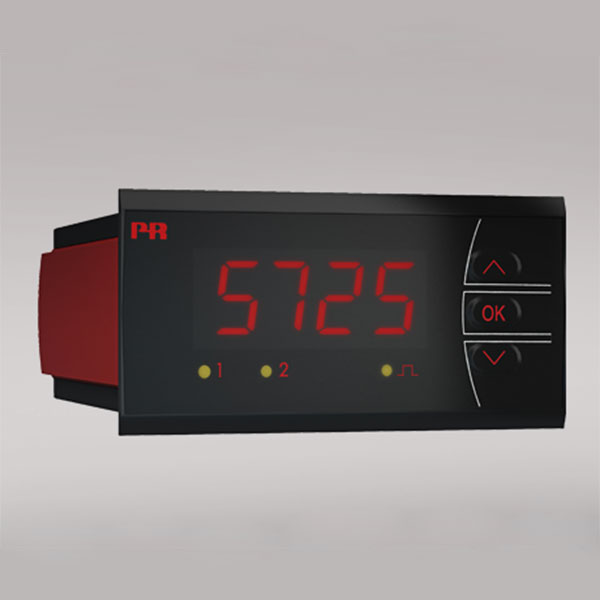

• The 5725 measures, scales, and displays frequency signals found in many process speed and flow rate applications.
• The indicator can measure the period of the frequency, useful for displaying the elapsed time between events.
• The 5725D has two SPDT setpoint contacts and a 0/4...20 mA output for process control.
• The installed display provides IP65 environmental sealing, and additional protection is provided by the optional 8335 splash proof cover.

Technical characteristics

• 4-digit display with 13.8 mm high, 14-segment LED digits and adjustable decimal point.
• Indicator is scalable from -1999 to 9999.
• Scrolling help text makes programming easy.
• Customizable trigger levels allow measurement of nearly any pulse sensor.
• Built-in excitation source for measuring NPN, PNP, NAMUR and S0 sensors.
• Fast response time of 1 cycle + 100 ms, and excellent accuracy of better than 0.05% of selected range.
• The analog output current on the 5725D can be dampened from 0.1 to 60 seconds, and can handle up to 800 Ohms loop load.
• The 5725 meets NAMUR NE21 recommendations for high performance in harsh EMC environments.
• High 2.3 kVAC galvanic isolation, and an excellent signal/noise ratio of > 60dB.

Mounting / installation / programming

• Easy to mount 1/8 DIN (48x96 mm) panel meter with IP65 (type 4X) sealing.
• Approved for marine applications.
• Fully push-button programmable.
• Password-protected.
