Application

• Temperature measurement in general work, industrial and storage facilities as well as cold and freezing rooms.

Technical characteristics

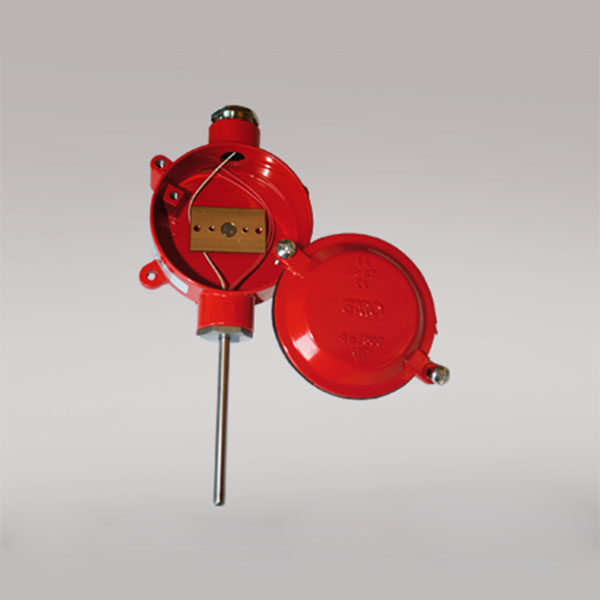

• The sensor element is a thin film platinum resistor - Pt100 - laboratory-trimmed to comply with the resistance values defined in the standard IEC 60751 DIN class A.
• The advantage of a thin film element is a very short response time.
• The Pt100 element is electrically isolated from the protection tube and the terminal head.
• The protecting tube measures Ø 6 x 1 mm. It is made of stainless, acid-proof steel W No. 1.4571/ AISI 316TI, filled with aluminum oxide powder.
• The terminal head is produced of lightweight metal and protected against corrosion through industrial lacquering.

Electrical connection

• The sensor is delivered with a 3 wire connection.

Option

• The Pt100 temperature sensor type 7410 can be delivered with an integrated 2-wire universal temperature transmitter type 5331, 5333, 5335, 5337 or 5350 for both standard applications or applications with bus communication.
