Application

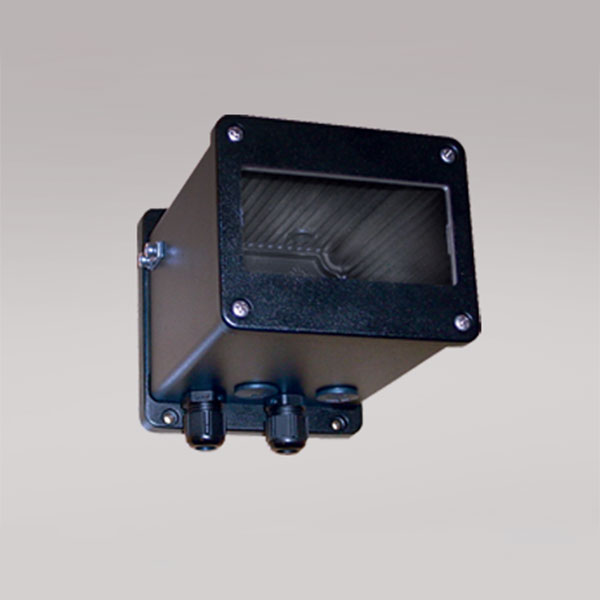

• Multi-purpose enclosure with cut-out hole for mounting of PR electronics’ LCD / LED instruments type 5531A, 5714, 5715 and 5725.
• 8501 is suitable for protection of PR LCD / LED instruments to be mounted in harsh process environments.
• The type 8501 enclosure complies with industrial standards for efficient protection of process equipment in wet areas up to IP65.

• Technical characteristics
• The enclosure is made of corrosion resistant aluminum.
• All surfaces are protected with a salt-water proof powder coating.
• Fixing screws for front and backplate are made of stainless, acid proof steel.
• Can be delivered with up to 4 M16 cable glands. Safety plugs are fitted in unused cable gland entries.

Mounting / installation

• To be mounted on wall by way of 4 mounting screws (not included).
