Pressure Switches

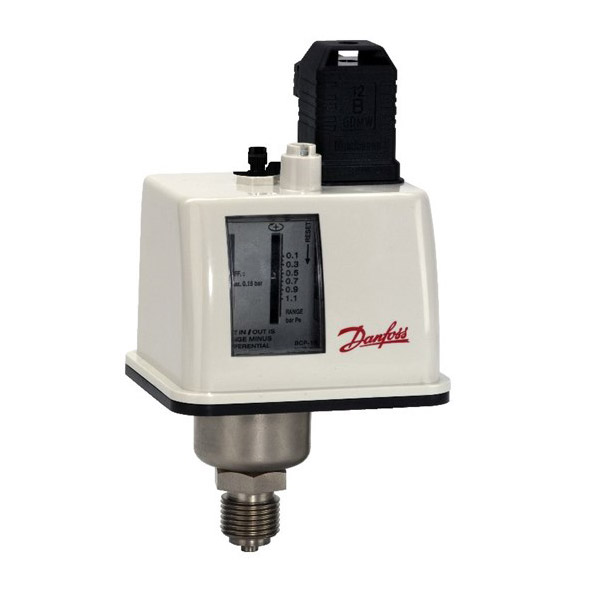

The BCP pressure switch is a series of dedicated pressure switches for safety and pressure monitoring of steam and hot water boilers. The BCP incorporates a single-pole changeover micro switch where the contact position depends on the pressure in the connection port and the range set value. For installations, in which operation is particularly critical for safety reason, the use of fail-safe control is recommended.

Available as high and low pressure limiters as well as pressure controllers
Wide pressure range: from low pressure BCP1 with narrow differential to high pressure BCP7
The fail-safe dual bellows enable premature cut-out when fault occurs
Din plug mounted on the top of control for easy electrical wiring
Single-pole changeover switch (SPDT), switch + alarm
Direct mounting on pressure connection or wall mounting by means of a bracket
Versions with automatic and manual resets available
Screw adjustments made on top of housing
Manual reset for pressure limiters possible only by means of tools
Version with gold plated contact for electronic devices
