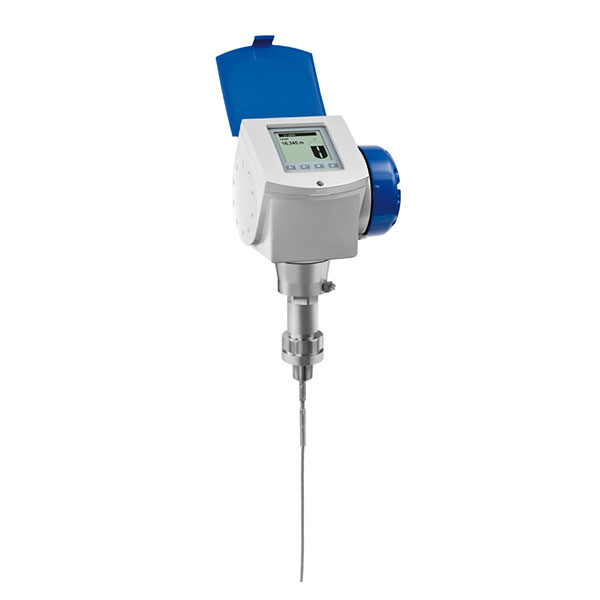

This device is a Guided Radar (TDR) Level Meter for measuring distance, level, interface, level and interface, volume and mass. It has higher signal dynamics and a sharper pulse than conventional TDR devices and therefore better reproducibility and accuracy.
A variant with a remote converter can be mounted up to 14.5 m / 47.6 ft from the probe. The device can operate at very low and very high process temperatures as long as the process connection temperature limits are observed.
Highlights
- Displays level and interface
- PACTware and DTMs included as standard
- Optional second current output - used for displaying interface measurements, for example
- High-pressure and high-temperature versions
- Optimal process safety (with Metaglas® dual process sealing system for dangerous products)
- Display in 9 languages: even in Chinese, Japanese and Russian
- Available in stainless steel and Hastelloy® C-22. Other materials are available on request: monel, tantalum, titanium, duplex, ...
- Angled single cable and rod probes are available on request for installation in tanks which contain obstructions
Industries
- Chemicals & Petrochemicals
- Oil & Gas
- Minerals & Mining
- Wastewater
- Pulp & Paper
- Food & Beverages
- Pharmaceutical
- Energy
Applications
- Blending tanks
- Distillation tanks
- Process tanks
- Separator
- Solid silos (inventory)
- Storage tanks
