Guided Radar (TDR) Level Transmitter for the nuclear industry
- Agrees with nuclear standards (e.g. ASME Section III, RCC-M)
- Qualified according to IEEE Std 323, IEEE Std 344 and RCC-E
- Remote converter can be installed up to 400 m / 1312 ft away from probe
This 2-wire loop-powered HART® TDR level transmitter measures distance, level and volume of liquids. Ist different versions, high resistance to radiation and seismic qualification make it the ideal TDR device for safety-related and non-safety-related nuclear applications.
Highlights
- Product dedicated to the nuclear industry
- The result of over 15 years of experience in the nuclear market
- Referenced for many nuclear applications
- Different versions to suit any nuclear application
- For safety-related and non-safety-related applications
- Agrees with nuclear standards (e.g. ASME Section III, RCC-M)
- Remote converter can be installed up to 400 m / 1312 ft away from probe
- Qualified according to IEEE Std 323, IEEE Std 344 and RCC-E
- High resistance to radiation (probe and cable)
- Seismic qualification up to 300 m/s²
- Thermal aging qualification: +107°C / +224.6°F for 296 days
- DPR (Dynamic Parasite Rejection): the software dynamically eliminates false reflections caused by environmental disturbances and product build-up
- Quick coupling system: converter is rotatable and removable under process conditions
- Display keypad directly accessible without opening the cover
- Measuring range up to 40 m / 131 ft
- Design agrees with IEC 61508
- Conforms to IEC 61513
- The device has FDT1.2 DTM certification
Industries
Applications
- Liquid level measurement in radiation environments
- Safety-related and non-safety-related applications
- Liquid level measurement in pools (e.g. spent fuel pools) or pressurized tanks
- Examples of liquids that can be measured:- Borated water
- Active waste water and concentrate
- Chemicals (e.g. H3BO3, Na2CO3, NaOH, MnO4, HNO3, NH4OH, N2H4,
KOH)
- Clean or impure condensate
- Oil, diesel, kerosene
- Spent resin and waste water
- Acid and alkali decontamination solutions
Versions

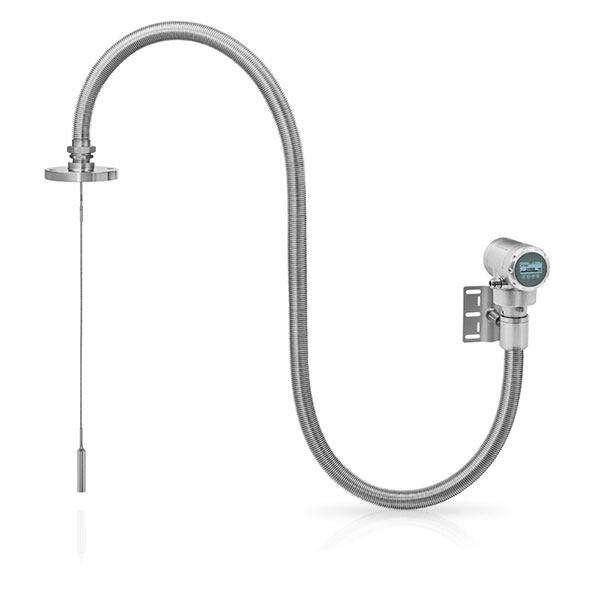

POWERFLEX 2200 C – Compact Version
- Signal converter (main electronics block) with display, located on top of the probe
- Version for low levels of radiation: TID (Total Integrated Dose) ≤5.7×103 rad
- Horizontal or vertical housing made of stainless steel
POWERFLEX 2200 S – Compact version with sensor extension
- Signal converter with display, located up to 100 m / 328 ft from the probe
- Passive remote of main electronics block using coaxial cable (TDR signal)
- Coaxial cable protected by a flexible stainless steel jacket
- Version for high levels of radiation: TID ≤2.7×108 rad (probe and coaxial cable)
POWERFLEX 2200 F – Remote Version
- Signal converter with display, located up to 300 m / 984 ft away from the probe
- Active remote of main electronics block using RS-485 cable (digital communication)
- Sensor electronics block located on top of the probe
- Version for low levels of radiation: TID ≤10.5×103 rad (probe and RS-485 cable)
POWERFLEX 2200 D – Remote version with sensor extension
- Signal converter with display, located up to 400 m / 1312 ft from the probe
- Active remote of main electronics block using RS-485 cable (max. 300 m / 984 ft) combined with passive remote of sensor electronics block using coaxial cable (max. 100 m / 328 ft)
- Version for high levels of radiation: TID ≤2.7×108 rad (probe and coaxial cable)
