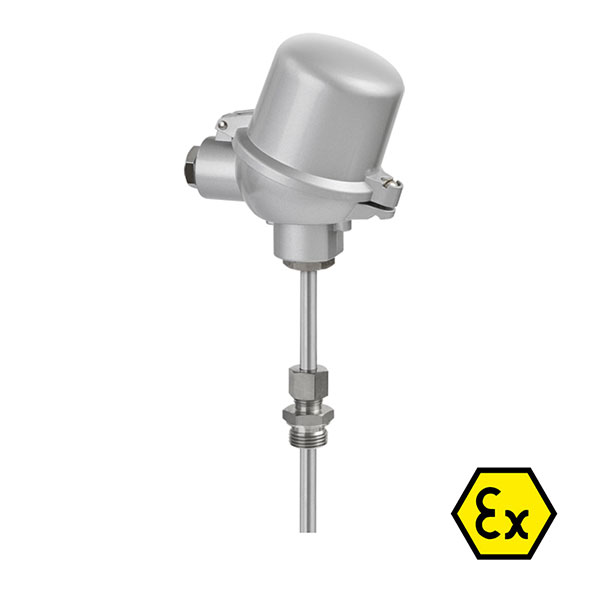

Industrial Temperature Assemblies – OPTITEMP TRA/TCA-P10
Sosyal Medya'da Paylaş
Ürün Açıklaması

Standard sensor for compression fitting

The OPTITEMP TRA/TCA-P10 temperature assembly is available with or without thermowell, usually attached with a compression fitting. It's an all-purpose device since the decision as to the required insertion depth is only necessary immediately prior to installation.

Form acc. DIN 43772: Form 2

Design: DIN-style, welded, multipart thermowells

Process connection: Insertion , e.g with compression fitting

Neck tube connection: no necktube forseen

Tip design: straight tip

Diameter: Ø 9, 10, 11 and 12 mm

Features

  • Temperature range from -200°C to ≤ 600°C, depending on the load
  • Different heads available, IP54 to IP68
  • Optional head mounted transmitter & display
  • Spring loaded mineral isolated RTD or TC insert
  • Inserts sheath material 316 L or Inconel 600
  • Standard and customised length
  • Ex Approvals:

- ATEX II 1G Ex ia IIC T6 Ga
- ATEX II 1D Ex ia IIIC T145°C Da IP65

Industries

  • Chemical and petrochemical
  • Oil and gas
  • Power generation
  • Machinery
  • Iron and Steel
  • Pulp and paper

Applications

Insertion-type thermometers are particularly well suited to simple measuring tasks under ambient pressure and for low flow velocities in mechanical and plant engineering.
