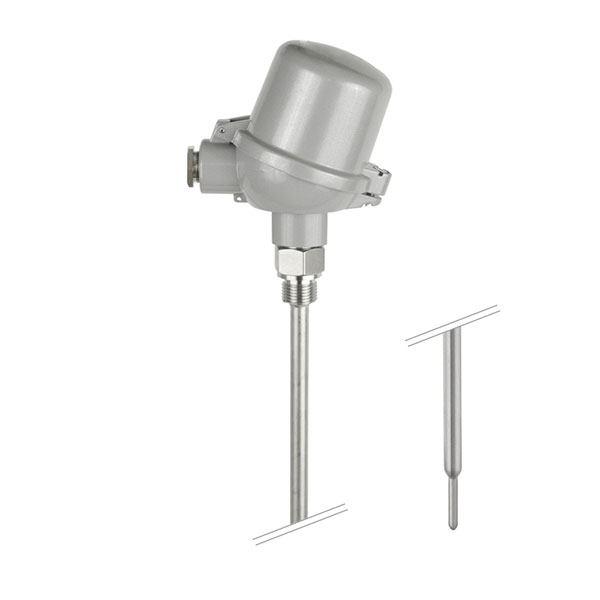

Industrial Temperature Assemblies – OPTITEMP TRA/TCA-S21
Sosyal Medya'da Paylaş
Ürün Açıklaması

Sensor with reduced tip for screw-in

The OPTITEMP TRA/TCA-S21 is a temperature assembly for screw-in. It is predominantly used in the lower temperature range (up to +150°C /
+302°F). When it features a neck tube, spatially separating the process connection from the connection head, the connection head cannot heat up as much. This is particularly important when there is a temperature transmitter in the connection head.

Design: DIN-style, welded, multipart thermowells

Process connection: threads: G 1/2, G 3/4, G 1, 1/2" NPT and 3/4" NPT

Neck tube connection: without neck tube

Tip design: reduced tip

Diameter: Ø 11/6 and 12/6 mm

Features

  • Temperature range from -200°C to ≤ 600°C, depending on the load
  • Different heads available, IP54 to IP68
  • Optional head mounted transmitter & display
  • Spring loaded mineral isolated RTD or TC insert
  • Inserts sheath material 316 L or Inconel 600
  • Standard and customised length

Industries

  • Chemical and petrochemical
  • Oil and gas
  • Power generation
  • Machinery
  • Iron and Steel
  • Pulp and paper


Applications

Threaded thermometers are recommended for general temperature measurement in pipelines and tanks for all industrial areas, even with higher pressures and flow velocities. Threaded thermometers without thermowell are predominantly used to measure the temperature of solids or monitor the temperature in gear units, bearings or machine components.
