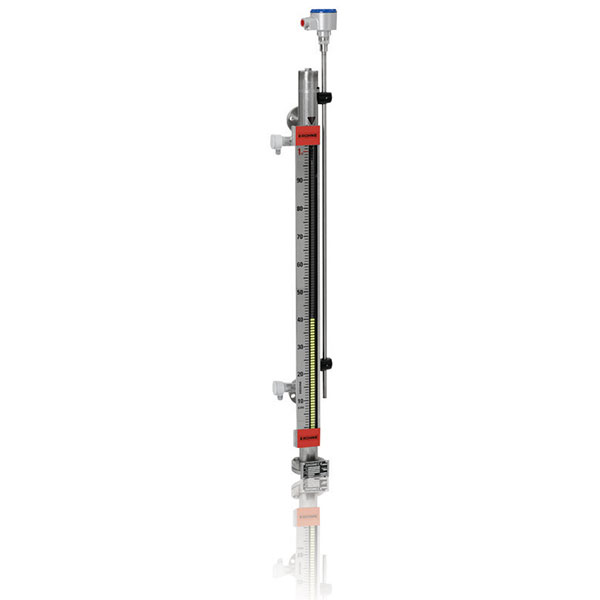

Magnetic Level Gauge – BM 26 A
Sosyal Medya'da Paylaş
Ürün Açıklaması

Bypass Level Indicator

The proven mechanical-based solution for level indication

  • Most compact bypass level indicator on the market
  • Robust, stainless steel design
  • Permanent, IP68 local indication without power supply

The BM 26 is a simple, rugged instrument designed to indicate level or interface. It indicates level using a float magnetically coupled to an index or a column of rotating flaps. It is ideal for aggressive media stored in tanks when the PTFE lining option is used.

For liquids with densities less than 0.5 kg/l / 31 lb/ft³, pressures more than 120 bar / 1740 psig and temperatures higher than 300°C / 570 °F, we recommend our BW 25 displacer-type level indicator.

Highlights

  • Stainless steel design (optional NACE conformity)
  • Proven technology
  • Temperature range: -200…+300°C / -325…+570°F
  • Pressure range: -1…120 bar / -14.5…1740 psig
  • Density: 0.5…3 kg/l / 31…187 lb/ft³
  • Float material options: 316L, 316 Ti and Titanium
  • Stainless steel scale with wide choice of markings: m/cm, ft/in, %, volume etc.
  • Less risk of leakage than a sight glass - little or no maintenance needed
  • Easy to install
  • Ideal for tanks with obstructed environments
  • Optional indication of interface
  • Optional approvals for EEx i or EEx d applications

Industries

  • Chemical and Petrochemical
  • Oil and Gas
  • Power

Applications

  • Boilers
  • Condensators
  • Hydrocarbons and Separators
  • Liquid gas
  • Process and storage tanks
  • Steam cracking
