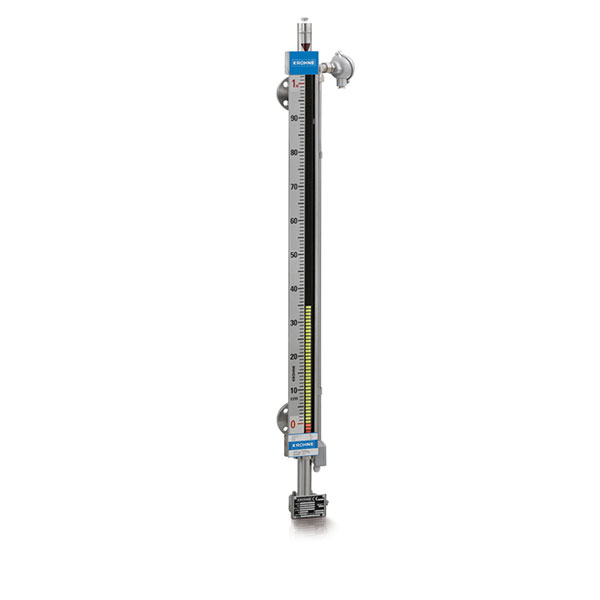

Magnetic Level Gauge – BM 26 BASIC | ADVANCED
Sosyal Medya'da Paylaş
Ürün Açıklaması

Stainless Steel Bypass Level Indicators for applications up to 40 bar / 580 psig

  • Best price / performance ratio
  • Full stainless steel construction
  • IP68 local indicator with bold colours and an optional stainless steel scale

Our bypass level indicators are simple, rugged devices designed to indicate or transmit the level of liquids. They indicate level using a float magnetically coupled to a column of rotating flaps. Bistable switches can be attached to the measuring tube to detect level.

The Basic version is ideal for measuring liquids with a density ≥0.75 g/cm³ / ≥46.8 lb/ft³, temperatures up to 150°C / 300°F or pressures up to 16 bar / 232 psig (for more data, refer to Guidelines for maximum operating pressure on page 37). Level can also be transmitted via an ER analog transmitter.

The Advanced version is ideal for measuring liquids with density range of 0.54...2.0 g/cm³ / 33.7...124.8 lb/ft³, temperatures up to 300°C / 570°F or pressures up to 40 bar / 580 psi (for more data, refer to Guidelines for maximum operating pressure on page 37). Level can also be transmitted via an ER analog transmitter or Radar/TDR level transmitters.

Highlights

Stainless steel design, including indicator rail (Hastelloy® C-276 as an option)
Proven technology
Less risk of leakage than a sight glass - little or no maintenance needed
Easy to install
No power required - permanent local indication
Indicator is isolated from process (magnetically-coupled)
Conforms to the latest European construction standards (NACE as an option)
Optional approvals for Ex i applications
Optimal construction: weight is kept to the minimum

Industries

  • Chemical
  • Oil and Gas
  • Petrochemical
  • Water

Applications

  • Low- and medium-pressure storage tanks
  • Process tank
  • Separators
  • Distillation tank
