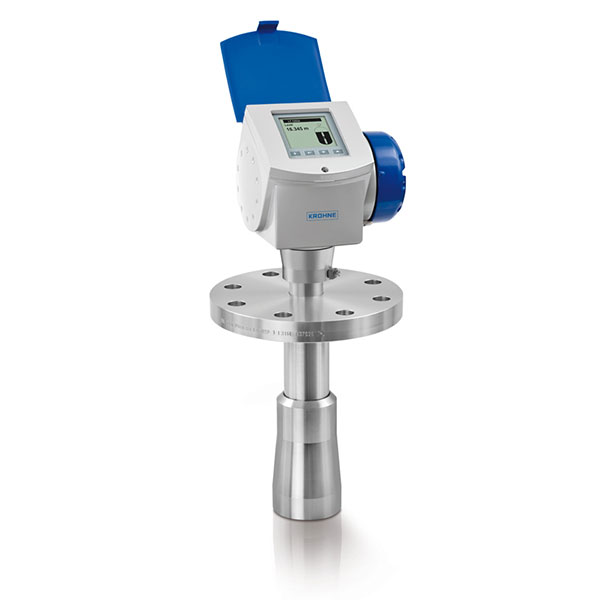

Non-Contact Level Meters – OPTIWAVE 7300 C
Sosyal Medya'da Paylaş
Ürün Açıklaması
The radar solution for liquids
  • For liquid applications
  • The only guarantee for measuring accurately in difficult conditions
  • Antenna options (Drop, Hygienic, …) designed for specific purposes
This device is a non-contact Radar (FMCW) Level Meter for distance, level, volume and mass measurement of liquids, pastes and slurries. It gives a stabler measurement than pulse radar and is well suited to agitated process conditions. The device can operate at very low and very high process temperatures as long as the process connection temperature limits are observed.

Highlights
  • ±3 mm / ±0.12¨ standard accuracy
  • Optionally equipped with a 4-button touch screen display and an easy-to-use setup wizard
  • Reliable measurement in difficult process conditions
  • Operates up to a process connection temperature of 200°C / 390°F and 40 bar / 580 psig
  • Measuring range up to 80 m / 260 ft
  • Horn and Drop antenna versions can be extended to suit any nozzle length
  • Drop antenna for corrosive liquids (with optional PTFE/PP flange plate) or where product build-up is likely to occur
  • Sealed Drop antenna extension option for pressurized tanks
  • Hygienic antenna for processes where stringent hygiene standards must be obeyed
  • PACTware and DTMs included as standard
  • Optional second current output
  • Directly-accessible graphic touchscreen/wizard (option)
  • Converter rotates 360°
  • Triple barrier gas-tight protection available for working with dangerous gases (using pre-stressed fused glass)
Industries
  • Chemicals
  • Food & Beverage
  • Oil & Gas
  • Petrochemicals
  • Pulp & Paper
  • Water & Wastewater
Applications
  • Tanks with agitators
  • Process tanks
  • Storage tanks
