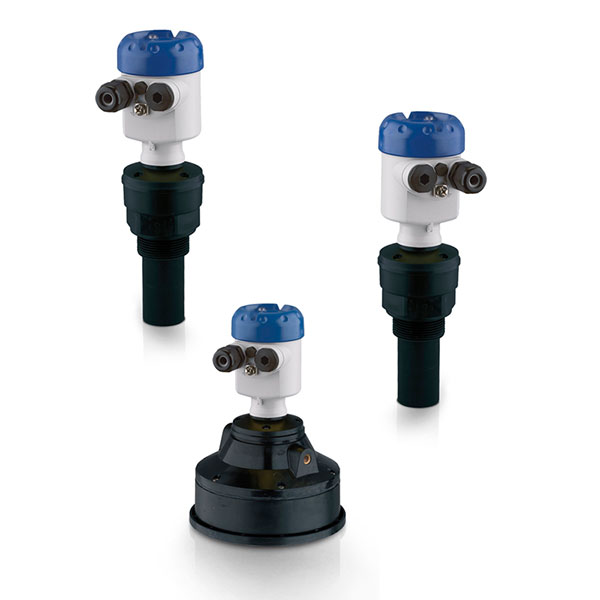

OPTISOUND 3010 C, 3020 C and 3030 C ultrasonic sensors are especially suitable for level measurement of liquids, but are also good for solids. The instruments differ in the measuring range, the transducer version and the process fitting. Through different, adapted emitting frequencies, levels in a measuring range of 0.25 m ... 15 m (0.82 ft ... 49.2 ft) can be measured.
Resistant materials for transducers and process fittings also allowa pplications in corrosive products (depending on the model). A practical mounting strap (option) enables easy orientation of OPTISOUND 3030 C.

OPTISOUND 3010 C

The application range covers liquids and solids in virtually all industries, especially in the water and sewage water treatment treatment.

Measuring rang

liquids: 0.25 - 5 m

solids: 0.25 - 2 m

Process connection: G1½A of PVDF

Process temperature: -40 - 80°C

Process pressure: -0.2 - 2 bar

OPTISOUND 3020 C

The application range covers liquids and solids in virtually all industries, especially in the water and sewage water treatment treatment.

Masuring range:

liquids: 0.4 - 8 m

solids: 0.4 - 3.5 m

Process connection: G2A of PVDF

Process temperature: -40 - 80°C

Process pressure: -0.2 - 2 bar

OPTISOUND 3030 C

The application range covers liquids and solids in virtually all industries.

Measuring range:

liquids: 0.6 - 15 m

solids: 0.6 - 7 m

Process connection: compression flange or mounting strap

Process temperature: -40 - 80°C

Process pressure: -0.2 - 1 bar
