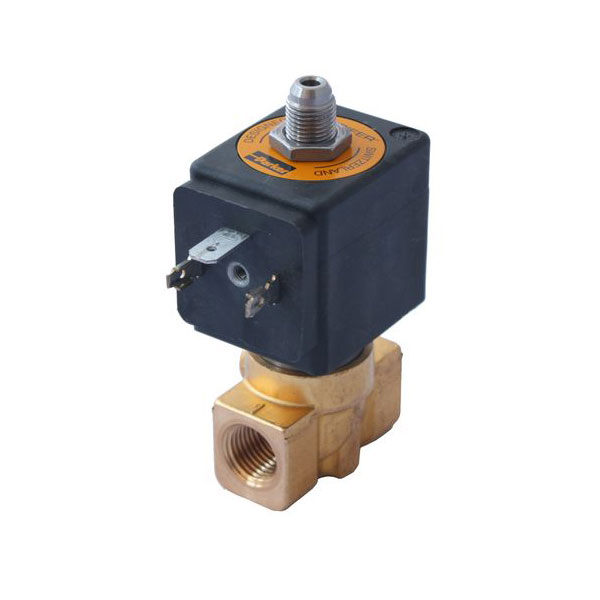

Parkers' 3-Way Controlled by Normally Closed G 1/4" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .

Orifice Sizes: Up to 8 mm
Flow Factor (KV): Up to 1.2 m3/h
Operating Pressure Differential (MOPD): Up to 75 bar
Media: Air, gases, water and light oil
Max Media Temp.: 190°C
Electrical: from 0.3 Watts up to 14 Watts

Applications:

• Compressors
• Water dispensing & purification
• Cooling systems
• Sterilizers
• Analyzers and diagnostic equipment
• Medical and dental devices
• Welding equipment
• Lubrication equipment
• Beverage dispensing & vending machines
• Oil burners
• Humidification and misting equipment
• Mobile equipment
• Textile and dry cleaning machines
• Irrigation
