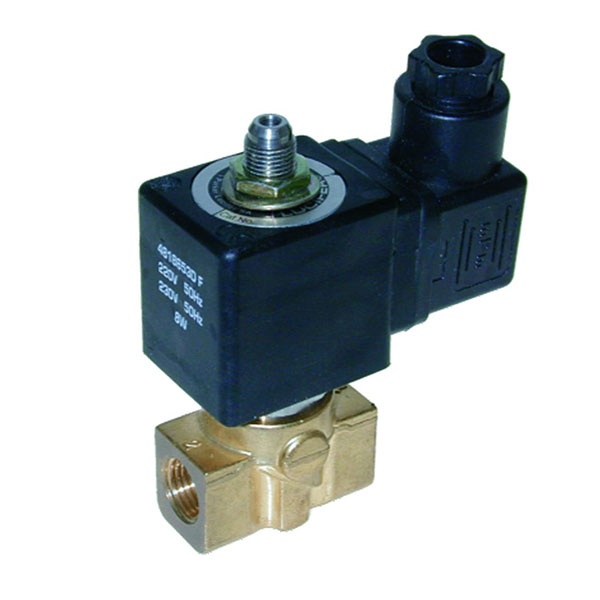

PARKER 3-WAY NORMALLY OPEN, 1/4" GENERAL PURPOSE SOLENOID VALVES
Sosyal Medya'da Paylaş
Ürün Açıklaması
Parkers' 3-Way Normally Open G 1/4" Solenoid Valves provide operating pressures up to 40 bar and flow factors up to 0.6 m3/h. They offer multiple body and sealing materials for all general purpose fluid control applications.

Parkers' 3-Way Open G 1/4" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .

Orifice Sizes: Up to 8 mm
Flow Factor (KV): Up to 0.6 m3/h
Operating Pressure Differential (MOPD): Up to 40 bar
Media: Air, gases, water and light oil
Max Media Temp.: 120°C
Electrical: from 8 Watts up to 11 Watts

Applications:

  • Compressors
  • Water dispensing & purification
  • Cooling systems
  • Sterilizers
  • Analyzers and diagnostic equipment
  • Medical and dental devices
  • Welding equipment
  • Lubrication equipment
  • Beverage dispensing & vending machines
  • Oil burners
  • Humidification and misting equipment
  • Mobile equipment
  • Textile and dry cleaning machines
  • Irrigation
