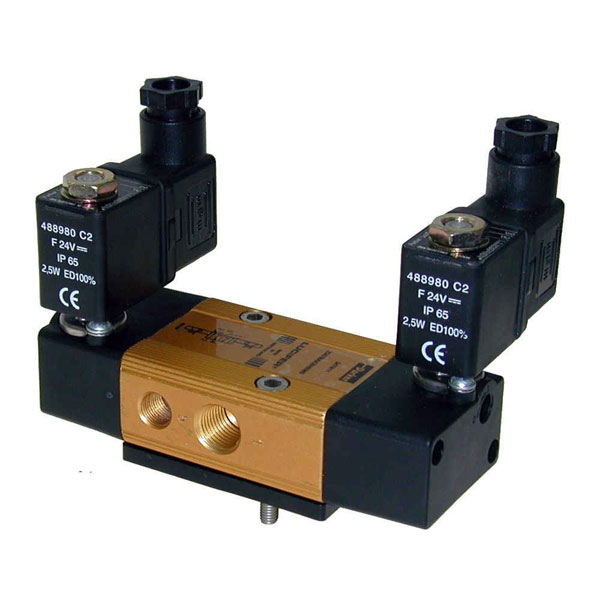

Parkers' 5-Way Closed Center Position G 1/4" Solenoid Valves are used in a wide variety of applications with or without pressure differential. Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities .
Orifice Sizes: 7 mm
Flow Factor (Qn): 1250 l/min
Operating Pressure Differential (MOPD): Up to 10 bar
Media: Air, gases, water and light oil
Max Media Temp.: Up to 120°C
Electrical: from 3 Watts to 9 Watts
Applications:
