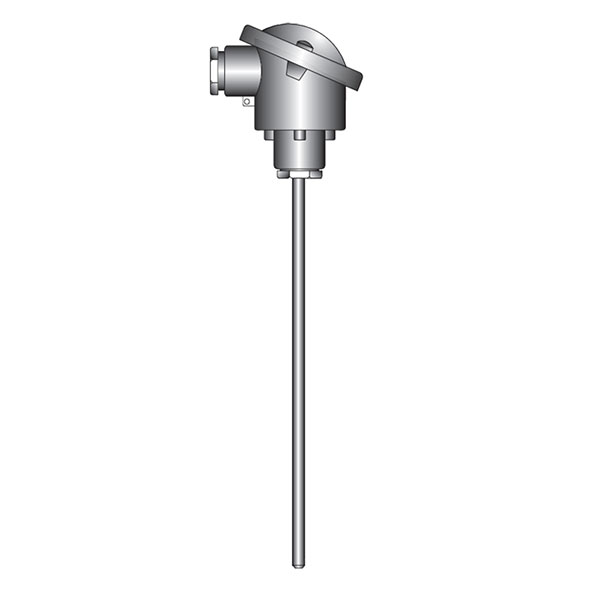

TCA-M40 Mineral insulated thermocouple
Sosyal Medya'da Paylaş
Ürün Açıklaması

Mineral insulated thermocouple for compress fitting

The plug-in thermocouple of the TCA-M series are made from mineral insulated cable and are used in almost all industries. They are mechanically and thermally highly stable. Their differentiating factor are the type of thermocouple, sheath diameter and the type of connection.

Execution: with BA-head

Process connection: fitting: M8, 1/8", 1/4" and 1/2"

Sheath material: 1.4841 / AISI 310 or 2.4816 / Inconel

Sheath - Ø: 1.5, 3, 4.5, 6 mm

Connection type: BA-head

Features

  • Temperature range with type J up to 750°C
  • Temperature range with type K or N up to 1150°C
  • Flexible, mineral isolated cable, bending radius 3 x diameter
  • Single and double versions
  • Short response time
  • Tolerance class 1 according to IEC 60584-2 is standard
  • Mounting by means of clamping or compression fitting
  • Measuring point isolated or grounded

Industries

  • Machine building
  • Plant engineering
  • Apparatus construction
  • Almost all industries

Applications

Temperature measurements, for example in housings, bearings, open channels, in flames, on surfaces, in liquid and gaseous media, in solids and bulk material at high temperatures and low pressures and flow rates.
